Resolution 0.5um Linear Encoder Scales for Dimensional Measurement Vision Measuring Machine

Download Technical Data: iqualitrol Linear Scales

Brief Introduction:

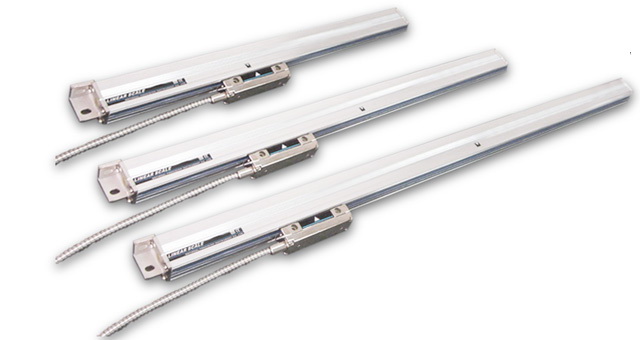

Linear Encoder/Scale MSA is a displacement sensor widely used with precision instrument, such as profile projector, Vision measuring machine, measuring microscopes, etc.

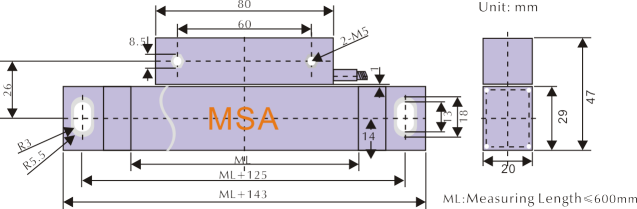

MSA Installation Size:

Application of Linear Encoder / Scale:

• It adopts the advanced coating replication technology of glass grafting; it ensures the accuracy of glass pitch: the benchmarks main and auxiliary grafting;

• It adopts the imported electronic components and uses the latest SMT chip mounting technology, it ensures the durability of electronic components and for each linear encorder;

• Scan read system adopts the reliable and durale five-bearing design, it ensures the movement optical induction system smoothly durably;

• It adopts the double anti-oil, high elasticty and anti-aging plastic as dust-seal,it ensures optimum sealing performance and minimal friction force.

• It adopts the precision spring as position controller for the scan read, it ensures the movement of bearing pulley durably and smoothly even in the condition of high-speed;

• It is strictly inspected by testing instrument for each glass, electronic components,dust-seal and snake skin tube,it ensures each linear encorder can calibration of the laser interferometer smoothly;


Technical Specifications:
