Testing equipment cap torque tester 1~40nm digital
plastic bottle lid torque meter

Brief Introduction:

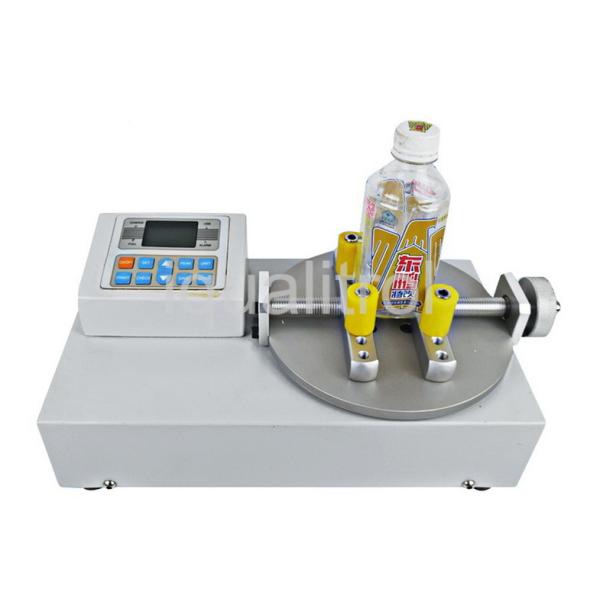

iqualitrol ANL-P bottle lid torque tester is an intelligent and multifunction measure instrument. Specially designed for testing and examining all kinds of bottle lid to open and close torque.

Applied in examining all kinds of bottle lid,light cap etc. open and close torque. Installed conveniently and fast, and the maximal diameter can reach 200mm,enclosed USB serial port output, can carry out transfer the data to the computer for analysis, printing and so on related process.

Function:

1:High accuracy, high stability, high resolution.
2:The sampling speed can be set.

3:The upper limit value and lower limit value can be set, has acousto-optic alarm device.
4:Lattice type liquid-crystal display, the backlight lamp can be set.

5:Torque direction identifies.
6:Three kinds of unit automatic conversion: N.m, Kg.cm, Lb.in.

7:Multi-peak values maintain.
8:Power source, electric quantity display and low electric quantity cue.
9:Close automatically under no-operation, the close time can be set.

10:Saves and prints 100 test data, delete at will.
11:Uses USB connect PC, test real-time, measure curve, and carries on processing to the data: such as prints, statistic. and so on.

Main Features:

1. High precision, high resolution, quick sampling speed, full-screen display.

2. Adopting high precision torque sensor, with torque direction display.

3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.

4. Three units can be switched each other (N·m,Kgf·cm,Lb·in).

5. Real-time, peak, automatic peak three models of optional switch.

6. Use USB interface and PC communications, synchronous test function can connect to the computer,computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.

7. Peak holding, remove automatically function, remove time to set freely.

8. Large storage, can save 99 groups of test data.

9. Without automatic shutdown function, time can be set freely.

Technical Specification:

iqualitrol is a professional company to supply quality control instrument and repair service. The main products are industrial video borescope, hardness testers, metallographical instrument, metallurgical microscopes, temperature test chambers, etc.

These are widely used in machinery, mold, metal, rubber, connectors, household appliances, printed circuit boards, medical equipment, and so on.

Our sales and service staff are well trained and experienced. They can give professional advice to customers and recommend suitable equipment according to specific requirement.
