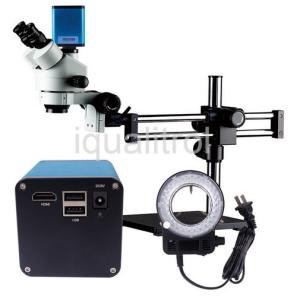

Inspection and Measurement Zoom Stereo Microscope with
Magnification 8X - 70X
Technical Data Download: iqualitrol

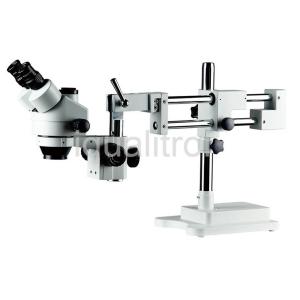

Stereo Microscope iStereo-115
Brief Introduction:
The stereo or stereoscopic is an optical microscope variant
designed for low magnification observation of a sample, typically
using light reflected from the surface of an object rather than
transmitted through it.
The instrument uses two separate optical paths with two objectives
and eyepieces to provide slightly different viewing angles to the
left and right eyes. This arrangement produces a three-dimensional
visualization of the sample being examined.
Stereomicroscopy overlaps macrophotography for recording and
examining solid samples with complex surface topography, where a
three-dimensional view is needed for analyzing the detail.
The stereo microscope is often used to study the surfaces of solid
specimens or to carry out close work such as dissection,
microsurgery, watch-making, circuit board manufacture or
inspection, and fracture surfaces as in fractography and forensic
engineering. They are thus widely used in manufacturing industry
for manufacture, inspection and quality control. Stereo microscopes
are essential tools in entomology.
Features:
1, Provides a high value, ruggedly built solution to meet the
strict demands required in today’s global environment for quality
assurance, materials analysis, production lines, assembly and
failure analysis.
2, Designed to meet the advanced needs of researchers, medical
laboratories and universities, it offers best in class performance,
value and versatility for multiple display and group viewing
applications.
3, Parallel-Optics design ensures better, faster and more reliable
identifications and sample
measurements. With an industry-leading 22mm field of view, the
parallel-optic lens system delivers users an image with extremely
high resolution and a large depth of field that avoids distortion
or aberration.
4, Long working distance, large depth of field, large zoom ratio
Trinocular main body can be match CCD (CMOS)camera, digital camera
5, Various eyepieces, divisional eyepieces and auxiliary objectives
to be selected
Available to match stands and universal stands, LED ring
illuminator, ring fluorescent lamp, fiber and etc.
6, Widely used in schools, biology engineering and science
research, industry assembly for inspection, measurement and quality
control.
Technical Specifications:
| Magnification | Total magnification(standard outfits): 8X~70X, extended total
magnification: 420X |
| Zoom ratio | Continuous zoom magnification: 0.8X~7.0X, zoom ratio 8.8:1 |
| Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
| Eyetubes | Inclined 35° |
| WD | 108mm |
| Focus range | 50mm( track stand: 100mm) |
| Interpupillary distance adjustment range (10X eyepiece) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |

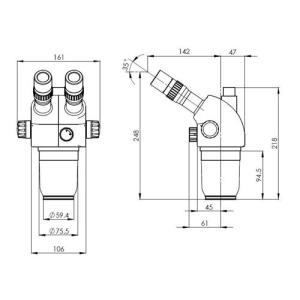

| The holder and the head matching dimension | Φ76mm |
| Distance between the center of the pole and the center of the
holder | 140mm |
| Diameter of the pole | Φ25mm |
| Diameter of the center working stage | Φ95mm |
| Illuminators | Optional illumination:5W fluorescent lamp at the bottom; halogen
lamp(6V,10W) on the top. |
| Eye-piece | Item | Main body | Specification of different auxiliary objective |
| 0.37X | 0.5X | 0.7X | 1.5X | 2X |
| 10X | Total Mag. | 8X~70X | 2.96X~25.9X | 4X~35X | 5.6X~49X | 12X~ 105X | 16X~ 140X |
FOV (mm) | Φ28.75~Φ3.3 | Φ74.3~Φ8.5 | Φ57.5~Φ6.6 | Φ41.1~Φ4.7 | Φ19.2~ Φ2.2 | Φ14.4~ Φ1.6 |
| 15X | Total Mag. | 12X~105X | 4.44X~38.9X | 6X~52.5X | 8.4X~73.5X | 18X~ 157.5X | 24X~ 210X |
FOV (mm) | Φ21.25~Φ2.4 | Φ57.4~Φ6.6 | Φ42.5~Φ4.9 | Φ30.4~Φ3.5 | Φ14.2~ Φ1.6 | Φ10.6~ Φ1.2 |
| 20X | Total Mag. | 16X~140X | 5.92X~51.8X | 8X~70X | 11.2X~98X | 24X~ 210X | 32X~ 280X |
FOV (mm) | Φ17.5~Φ2 | Φ47.3~Φ5.4 | Φ35~Φ4 | Φ25~Φ2.9 | Φ11.7~ Φ1.3 | Φ8.75~ Φ1 |
| 30X | Total Mag. | 24X~210X | 8.88X~77.7X | 12X~105X | 16.8X~147X | 36X~ 315X | 48X~ 420X |
FOV (mm) | Φ11.25~Φ1.3 | Φ30.4~Φ3.5 | Φ22.5~Φ2.6 | Φ16.1~Φ1.8 | Φ7.5~ Φ0.9 | Φ5.625~ Φ0.6 |
| WD(mm) | 108 | 275 | 195 | 145 | 50 | 35 |
NOTES:
1. Please use lengthened round post when using 0.37X objective,
track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands
cannot be used.
