Metallographical Digital Industry Inspection Microscope with DIC
and UIS Optical System
Technical Data Download: iqualitrol
Metallurgical Microscope iMet-230DIC
Brief Introduction:
iqualitrol iMet-230DIC Industry inspection and measure microscope
is suitable to observe surfaces structure and geometry of
workpiece.
iqualitrol iMet-230DIC equips with excellent UIS optical system and
modularization function design so that update system expediently
and achieved polarization, DIC observation.
Lift or down the optical and illumination unit along the leader to
adjust the distance from stage to objective, so that enable using
for different thickness workpiece.
Quickly and effectively locate the observation part of workpiece by
moving the mechanical stage. The motion of the focusing is roll
that the roller bearing moved guiding the trigon slideway, so that
the moving process is smooth.
This is ideal optical instrument for checking and measure in the
field of precision part, integrated circuit, packing material etc.
Metallurgical microscopes provide polarization which makes it much
easier to view a variety of minerals, types of metals and even ink
samples. Material defect analysis is performed with a metallurgical
microscope in search of the causes of corrosion, fatigue, stress
fractures and cracks. Environmental protection and oil production
often use metallurgical microscopes and in particular they may
utilize both the high magnification and polarization features of
the metallurgical microscopes.
Technical Specifications:
| Eyepiece | 10X wide field plan eyepiece and field of view Φ22mm |
| Infinity plan achromatic objectives | iMet-230DIC (Equipped bright field objective) | LMPlan5X/0.12 working distance: 15 mm |
LMPlan10X/0.3 working distance: 10.5 mm |
LMPlan20X/0.4
working distance: 4.5mm |
PL L50X/0.70
working distance: 3.68 mm |
| Eyepiece tube | Trinocular inclined 30˚, can be shot in 100% light flux. |
| Focusing system | Coaxial coarse/fine focus system, with tension adjustable device,
minimum division of fine focusing: 1.0μm. |
| Nosepiece | Quintuple (Backward ball bearing inner locating) |
| Stage | Mechanical stage,overall size:185mmX140mm,moving range: 35mmX30mm |

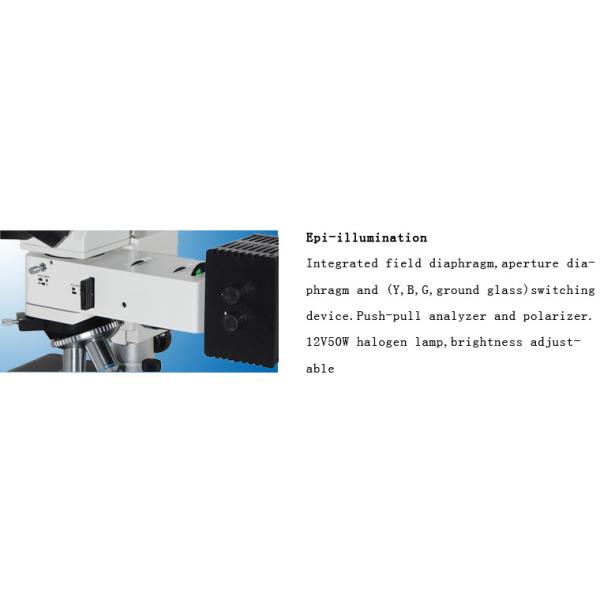

| Illumination system | iMet-230DIC | 12V50W halogen and brightness enable control. |
Integrated field diaphragm , aperture diaphragm and puller type polarizer. (Equipped with frosted glass and yellow, green and blue filters) |
| DIC group | 5X/10X/20X DIC group |
