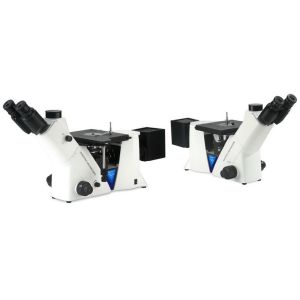

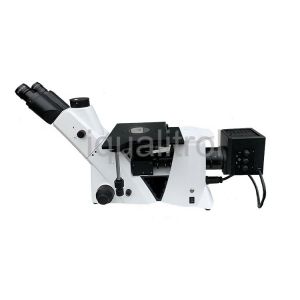

Metallurgical Microscope iMet-Y400
Brief Introduction:
iqualitrol Inverted Metallurgical Microscope iMet-Y400 series are
widely used in observation & analysis of metallurgical organization
in mechanical industry, research of geological & mineral
department, viewing and measuring crystal, integrate circuit,
micro-electronics etc. in electronic industry.
iMet-Y400 is the best choice of factories, academies, scientific
research organization and electronic industrial.
Key Features:
Dark field objective, Make observation in dark & bright field.
Oversize view field eyepiece, view field up to 22mm for comfortable
observation.
Oversized three-layer working stage, more choice for samples.
Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20
(80% for trinocular head and 20% for eyepiece)
Metallurgical LWD Infinity Plan Objectives
Technical Specifications:
| Item | Specification | iMet-Y400 | iMet-Y400BD |
| Eyepiece | WF10×/22mm (adjustable) | ■ | ■ |
WF10×/22mm
(adjustable, reticule 0.1mm) | ■ | ■ |
Metallurgical LWD Infinity Plan Objectives | LPL 5×/0.13 W.D=24.23mm | ■ | □ |
| LPL 10×/0.25 W.D.= 18.48mm | ■ | □ |
| LPL 20×/0.40 W.D.= 8.35mm | ■ | □ |
| LPL 50×/0.70(S) W.D.= 1.95mm | ■ | □ |
| LPL 40×/0.65 W.D.= 3.90mm | □ | □ |
| LPL 80×/0.80(S) W.D.= 0.85mm | □ | □ |
| LPL 100×/0.90(S) W.D.= 1.00mm | □ | □ |
Metallurgical LWD Infinity Plan Objectives for
Bright & Dark Field | M PLAN 5×/0.13 BD W.D=24.23mm | | ■ |
| M PLAN 10×/0.25 BD W.D.= 18.48mm | | ■ |
| M PLAN 20×/0.40 BD W.D.= 8.35mm | | ■ |
| M PLAN 50×/0.70 BD W.D.= 1.95mm | | ■ |
| M PLAN 80×/0.80 BD W.D.= 0.85mm | | □ |
| Seidentopf Trinocular Head | Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0 (100% for eyepiece) 80:20 (80% for trinocular head,and 20% for eyepiece) | ■ | ■ |
| Nosepiece | Quintuple | ■ | |
| Quadplex (specially for bright /dark field objectives) | | ■ |
| Mechanical Stage | Three layers,
Stage size: 210 mm×180mm,
Moving range:50×50mm,
Scale: 0.1mm | ■ | ■ |
Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm,
fine division 2μm. | ■ | ■ |
| Polarizing Unit | Polarizer/Analyzer | ■ | ■ |
| Illumination | 12V/50W Halogen
(Input voltage:100V～240V) | ■ | ■ |
| Filter | Blue | ■ | ■ |
| Green, Amber, Grey | □ | □ |
| C-mount | 1×C-Mount | □ | □ |
| 0.5× C-Mount (focus adjustable) | □ | □ |
Note: "■"In Table Is Standard outfits, "□" Is Optional Accessories. Packing Size: 660mm×590mm×325mm,
Gross Weight: 17 kg, Net Weight: 12.5 kg |
