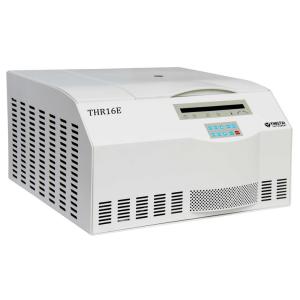

LED Display THR16E High Speed Refrigerated Centrifuge Pre-cooling
Design with Low Noise
Features:
1. Refrigerated centrifuge. Widely used for laboratory, chemistry
and hospital;
2. Pre-cooling design, 10 kinds of acceleration and deceleration;
3. More than 10 rotors for your choice;
4. High speed, low noise, compact design and small vibration;
5. User-friendly LED display provides speed, time and temperature
parameters;
6. Brushless frequency motor which in great torque, no powder
pollution, free maintenance, quick in speed up and down;
7. Imbalance sensor and over speed sensor, the centrifuge body is
made of high-quality steel, very safe.
Technical Specifications:
| Max. Speed | 16000rpm |
| Max. RCF | 29530×g |
| Max. Capacity | 4×800ml |
| Time Range | 0~99h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | -20℃-40℃ |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 700×715×420mm |
| Net Weight(Kg) | 125KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for THR16E:
| Order No. | Rotor No. | Max Speed (rpm) | Max Volume (ml) | Max.RCF(×g) |
| NOH30301 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
| NOH30344 | Angle Rotor | 15000 | 48×1.5/2ml | 27170 |
| NO30803 | Angle Rotor | 17000 | 24×1.5/2ml | 26460 |
| NO30804 | Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
| NO30805 | Angle Rotor | 16000 | 16×5ml | 22020 |
| NO30806 | Angle Rotor | 14000 | 12×7ml | 21380 |
| NOH30307 | Angle Rotor | 14000 | 12×15ml(falcon) | 23220 |
| NOH30308 | Angle Rotor | 16000 | 12×10ml | 29530 |
| NOH30309 | Angle Rotor | 15000 | 8×15ml(falcon) | 23680 |
| NO30810 | Angle Rotor | 14000 | 6×30ml | 19060 |
| NOH30311 | Angle Rotor | 15000 | 6×50ml(falcon) | 25080 |
| NO30812 | Angle Rotor | 12000 | 6×70ml | 15570 |
| NO30813 | Angle Rotor | 12000 | 4×100ml | 14850 |
| NO30814 | Angle Rotor | 12000 | 6×100ml | 14850 |
| NO30815 | Angle Rotor | 16000 | 6×10ml | 21500 |
| NO30816 | Angle Rotor | 18000 | 30×0.5ml | 26660 |
| NO30844 | Angle Rotor | 13500 | 48×1.5/2ml | 17930 |
| NO30671 | Swing Rotor | 4000 | 4×800ml (Round Cup) | 3450 |
| NO30696 | Swing Rotor | 4000 | 4×500ml ( Round Cup) | 3380 |
| NO30679 | Swing Rotor | 4000 | 4×500ml (Square Cup) | 3310 |
| NO31494 | Microplate Rotor | 4000 | 4×4×96 Well | 2840 |
| NO31491 | 4000 | 2×4×96 Well | 2490 |
| NO31376 | 4000 | 2×3×48 Well | 2300 |
NO30690
| Swing Rotor | 4000 | 4×40×7ml | 3270 |
| 4×40×5ml | 2890 |
| 4×18×10ml | 3140 |
| NO30607 | Angle Rotor | 5000 | 12×15ml | 3080 |
| NO30611 | Angle Rotor | 5000 | 6×50ml | 2850 |
| NO30640 | Angle Rotor | 5000 | 4×50ml | 2520 |
| NO30613 | Angle Rotor | 5000 | 4×100ml | 2630 |
| NO30639 | Angle Rotor | 5000 | 24×15ml | 3500 |
| NO30641 | Angle Rotor | 5000 | 12×50ml | 3860 |
| NO30614 | Angle Rotor | 5000 | 6×100ml | 3130 |
| NO30642 | Angle Rotor | 4000 | 12×100ml | 2970 |
