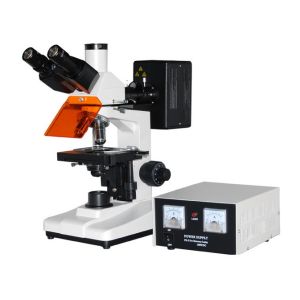

    L1501 Reflected Fluorescence Microscope With Halogen Lamp Brightness Control


    L1501 Reflected fluorescence microscope with Halogen lamp & brightness control


    Brief introduction:

    L1501 iqualitrol Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation.


    Iqualitrol L1501 is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc.


    Iqualitrol L1501 is an ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

    Features:
    1, With wide field eyepieces and achromatic objectives, the field of view is widely and clear;


    2, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm;


    3, 6Volt 20Watt Halogen lamp with brightness control;


    Technical Specifications:

    ModelL1501
    EyepieceWide field WF10X(¦µ18mm)
    ObjectiveAchromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 100X/1.25(Spring, oil)
    Fluorescence 25X/0.65
    Eyepiece tubeTrinocular (inclination of 30˚)
    Focus systemCoaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    NosepieceQuadruple(Backward ball bearing inner locating)
    Stage

    Double layer mechanical (Size:135mmX125mm,

    Move range: 75mmX35mm)

    Abbe condenserN.A.1.25 Rack & pinion adjustable
    FilterBlue filter
    Frosted filter
    CollectorFor halogen lamp
    Light source6V 20W Halogen lamp with brightness control.

    Reflected fluorescence system

    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system B exciton wavelength:450~490nm

    Fluorescence filter system G exciton wavelength:495~555nm
