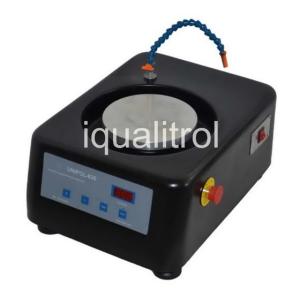

50-60HZ Frequency Single Disc Metallographic Grinding and Polishing Machine with Water Cooling

Brief Introduction:

iqualitrol UNIPOL-830 metallographic grinding and polishing machine is mainly used for grinding and polishing metallographic samples, and can also be used for grinding and polishing ceramics, glass, PCB, plastic and other materials.

Installation Condition:

This equipment is required to be used at an altitude of 1000m or less, a temperature of 25 °C ± 15 °C, and a humidity of 55% Rh ± 10% Rh.

1. Water: The equipment is equipped with a water inlet and a drain. Customers need to connect tap water to cool and drain the drain.

2, electricity: AC220V; 50Hz, there must be a good base.

3, gas: no.

4, workbench: size 800mm (L) * 600mm (W) * 700mm (H), bearing more than 200kgs.

5, Ventilation: No.

Main Feature:

This machine can be equipped with a pressure ring or a magnetic adsorption method to place sandpaper and polishing pad, and the work operation is more stable.

The magnetic adsorption is mainly to overcome the shortcomings of the traditional card-polishing fabric pleating. The polishing fabric with the pressure-sensitive adhesive is attached to the polishing film and then adsorbed on the magnetic sheet. Secondly, the replacement of the sandpaper and the polishing pad is more convenient.

Technical Specifications:

1, power: 110V/220V

2, grinding and polishing disk speed: 50rpm-600rpm

3, grinding and throwing disk: Φ203mm

Product specifications: size: 580mm*420mm*350mm; weight: 24kg

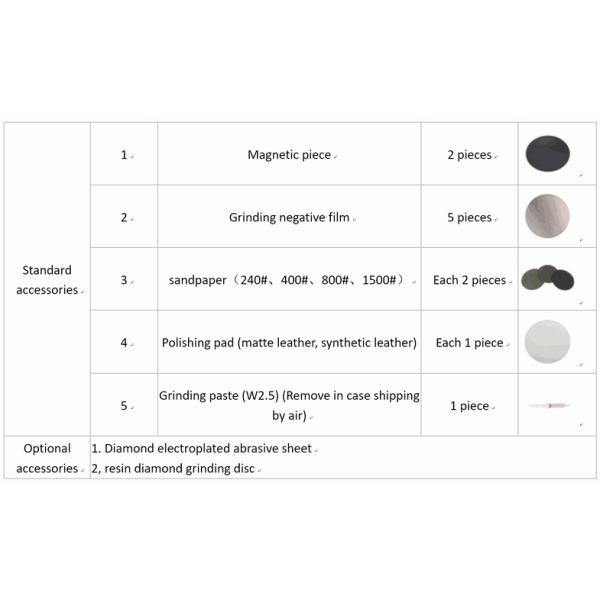

Grinding and polishing consumables for use:

Sandpaper, super fine water sandpaper, polishing flannel, polishing powder, polishing agent, abrasive paste.
